Phase Guide Mixer Chip

产品编号:4168374
规格:Fluidic 533, COC
包装规格:1 each
产品类别:进口试剂
品牌:Sigma-Aldrich
优惠价:立即咨询
产品价格
产品编号包装单位单价(元)国内现货国外库存询价单
41683741 each819
产品别名

Phase Guide Mixer Chip

Microfluidic chip

产品性质
description【描述】
Microfludic chip x1
基本信息
Application【应用】

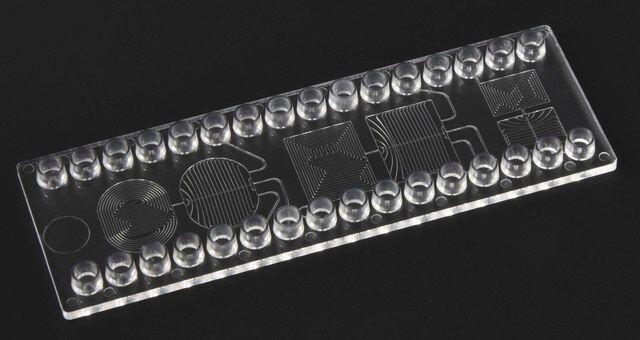

The Phase Guide Mixer Fluidic 533 COC microfluidic chip applies passive phaseguided mixing principles and is not meant to be used in flow-through mode.
Features and Benefits【特点和优势】

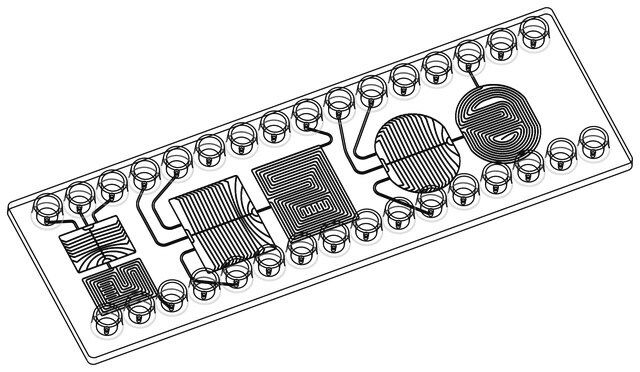

  • Three varying micromixing units per chip
  • Each unit features three inlets and one outlet
  • Phaseguide technology provides complete control over the filling and emptying of microfluidic structures
Components【组分】

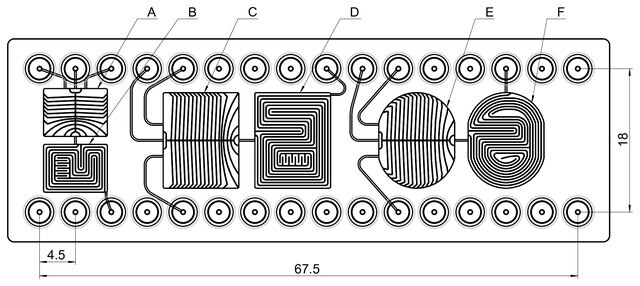

Chip Properties:
  • Mini Luer Interface
  • Material: Cyclic olefin copolymer (COC)
  • Volume of Chambers A & B: 5.6 μl
  • Volume of Chambers C & D: 13.2 μl
  • Volume of Chambers E & F: 11.1 μl

This mixer is based on the principles described in S. Hakenberg et al., A phaseguided passive batch microfluidic mixing chamber for isothermal amplification, Lab Chip, 12, 4576-4580, 2012.
