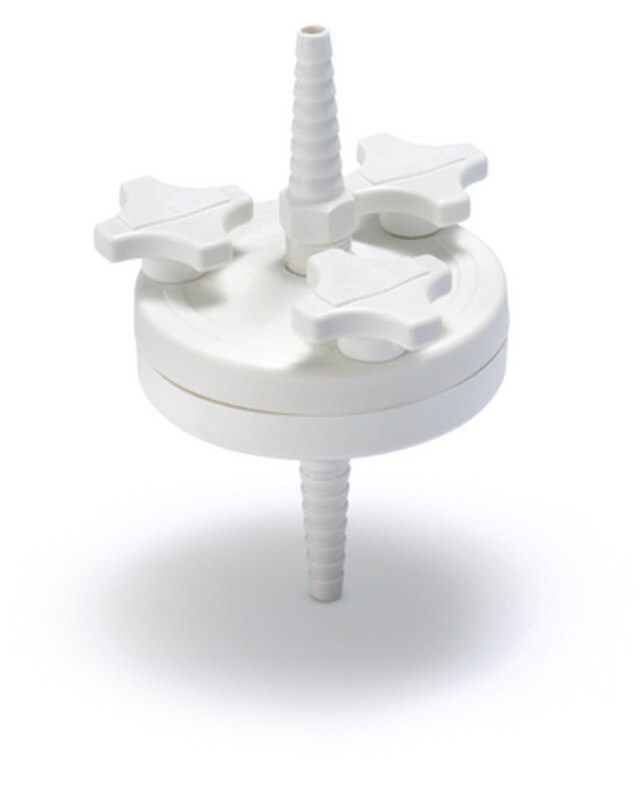

In-Line Filter Holder 47 mm

32031613

NB.24

In-Line Filter Holders are commonly use to ultraclean liquids or gases in line by pressure filtration. Simply open the housing to change the filter without disturbing the attached plumbing.



Features & Benefits:

•Stepped hose barb connections at both ends for easy installation

•Large, easy to grip hand knobs



Catalog Number Description

XX4304700 In-Line Filter Holder 47 mm



Replacement Parts

XX1104715 Support screen, 47 mm, polypropylene

XX4304701 O-ring (2-131), silicone

XX4304704 Hose adapter, 1/4 in. NPTF to 5/16 in. ID, polypropylene

XX4304705 Hand Knobs



Accessories

XX4304702 O-ring, (2-131), fluoroelastomer

XX4304707 Stainless Steel Support Screen, 47 mm

XX6200006P Filter forceps, blunt end, stainless steel

XX6700034 3 meters PVC tubing with 9.5 mm internal diameter

Nylon knob(s) (for hand)
polypropylene (filled)
silicone seal

100

5.5 bar max. inlet pressure (80 psi)
70 ℃ max. temp. at 5.5 bar

12 cm

7.6 cm

47 mm

13.8 cm²

42 mm , thick depth prefilter
47 mm , membrane prefilter

inlet connector for 6-9.5 mm I.D. flexible tubing
1/4 in. female NPT inlet fitting
outlet connector for 6-9.5 mm I.D. flexible tubing
1/4 in. female NPT outlet fitting

filtration

for use with In-Line Filter Holder

ambient
