Cross-shaped channel chip-200 μm channel
产品编号: | 4156346 |
规格: | Fluidic 394, Cyclic Olefin Copolymer (COC) with Luer Interface |
包装规格: | 1 EACH |
产品类别: | 进口试剂 |
品牌: | Sigma-Aldrich |
优惠价: | 立即咨询 |
产品别名
Cross-shaped channel chip-200 μm channel
Microfluidic
基本信息

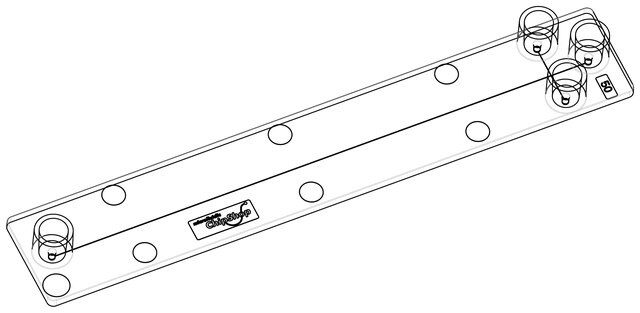

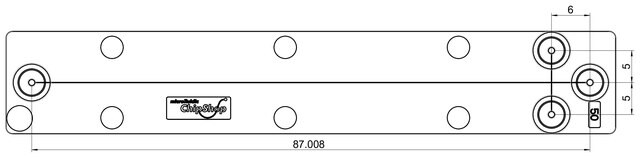

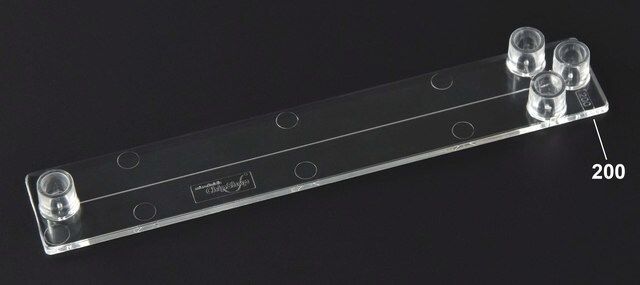

Application【应用】 | This is a cross-shaped channel chip with extended size platform I with electrodes (non-contact mode) and a Luer fluidic interface. This variation of the cross-shaped channel chips includes electrodes that can be used for the detection of charged molecules, for example. The material of the electrodes is 10 nm titanium and 100−150 nm gold. The electrodes are placed on the cover lid and assembled towards the atmosphere, resulting in electrode and the liquid to be analyzed having no contact. The use of these chips with this electrode arrangement requires a special instrumentation set-up. This detection technology is called C4D (capacitively coupled contactless conductivity detection). Cross-shaped channel chip - 200 μm channel, Fluidic 394, Cyclic Olefin Coolymer (COC) with Luer Interface |
