ChemiSCREEN Membrane Preparation Recombinant Human APJ Apelin Receptor

32161000

Apelin peptides have been discovered to be a family of peptides of different sizes that is derived from the N-terminus of a 77 amino acid precursor peptide (preproapelin) (Hosoya et al., 2000). Apelin receptor (APJ) is a G protein-coupled receptor that is activated by several apelin fragments. APJ activation leads to the inhibition of cAMP production. APJ and apelin peptides have been found to be involved in the regulation of cardiovascular function (Katugampola et al., 2001) and fluid homeostasis (Reaux et al., 2001). Broad roles of apelin system has been established in lowering blood pressure, as a potent cardiac inotrope, in modulating pituitary hormone release and food and water intake, in stress activation, and as a novel adipokine that is excreted from fat cells and regulates insulin (Lee et al., 2006) . Millipore′s APJ membrane preparations are crude membrane preparations made from our proprietary stable recombinant cell lines to ensure high-level of GPCR surface expression; thus, they are ideal HTS tools for screening of agonists and antagonists of APJ. The membrane preparations exhibit a Kd of 0.4 nM for [¹²⁵I]-Apelin. With 0.25 nM [¹²⁵I]-Apelin, 5 g/well APJ Membrane Prep typically yields greater than 20-fold signal-to-background ratio.
Full-length human AGTRL1 cDNA encoding APJ

Radioligand binding assay and GTPγS binding.

GPCR Class: A
Target Sub-Family: Apelin
Protein Target: APJ

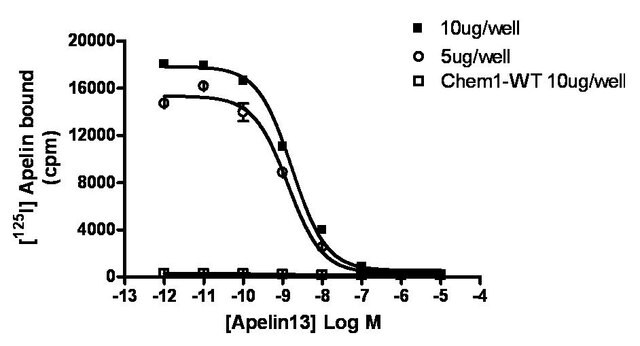

Table 1. Signal:background and specific binding values obtained in a competition binding assay with varying amounts of APJ membrane prep.

	10 µg/well	5 µg/well
Signal:Background	33	50
Specific Binding (cpm)	17297	15015

SPECIFICATIONS: 1 unit = 5 µg membrane preparation

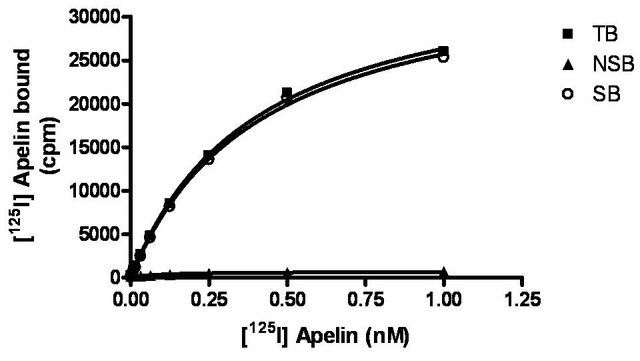

B_max for [¹²⁵I]-Apelin binding: 3.85 pmol/mg protein
K_d for [¹²⁵I]-Apelin binding: ~0.4 nM

Inucbation Conditions
Membranes are mixed with radioactive ligand and unlabeled competitor (see Figures 1 and 2 for concentrations tested) in binding buffer in a nonbinding 96-well plate, and incubated for 1-2 h. Prior to filtration, an FC 96-well harvest plate (Millipore cat. # MAHF C1H) is coated with 0.33% polyethyleneimine for 30 min, then washed with 50mM HEPES, pH 7.4, 0.5% BSA. Binding reaction is transferred to the filter plate, and washed 3 times (1 mL per well per wash) with Wash Buffer. The plate is dried and counted.

Binding buffer: 50 mM Hepes, pH 7.4, 5 mM MgCl₂, 1 mM CaCl₂, 0.2% BSA, filtered and stored at 4°C

Radioligand: ^[125I]-Apelin. (Perkin Elmer#:NEX-393 )

Wash Buffer: 50 mM Hepes, pH 7.4, 500mM NaCl , 0.1% BSA, filtered and stored at 4°C.

One package contains enough membranes for at least 200 assays (units), where a unit is the amount of membrane that will yield greater than 20-fold signal:background with ¹²⁵I labeled Apelin at 0.25 nM

Liquid in packaging buffer: 50 mM Tris pH 7.4, 10% glycerol and 1% BSA with no preservatives.
Packaging method: Membranes protein were adjusted to the indicated concentration in 1 ml packaging buffer, rapidly frozen, and stored at -80°C.

CHEMICON is a registered trademark of Merck KGaA, Darmstadt, Germany

100

human

expressed in Chem-1 cells

ChemiScreen
Chemicon^®

ligand binding assay: suitable (GTPγS)
radioligand binding assay (RLBA): suitable

NP_005152

P35414

dry ice

human ... APLNR(187)

Maintain frozen at -70°C for up to 2 years. Do not freeze and thaw.

Unless otherwise stated in our catalog or other company documentation accompanying the product(s), our products are intended for research use only and are not to be used for any other purpose, which includes but is not limited to, unauthorized commercial uses, in vitro diagnostic uses, ex vivo or in vivo therapeutic uses or any type of consumption or application to humans or animals.

10 - Combustible liquids

WGK 2
