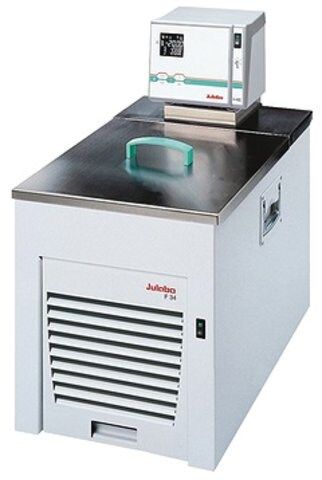

Julabo^® HighTech series refrigerated/heating circulator

NB.77

For internal and external temperature applications. All HighTech circulators are capable of monitoring an external system directly with an optional Pt 100 temperature sensor. Safety class 3.

• ICC = Intelligent Cascade Control
• Optimum temperature stability with varying systems achieved by the self-tuning controller, adjustable PID control parameters
• VFD Comfort display, resolution to 0.01℃
• RS232 and RS485 interface, option: integrated Profibus
• LCD display (HL model only) for convenient user-guidance, analog/digital setpoint input. Display resolution 0.01 up to 99.99℃

Julabo is a registered trademark of Julabo USA, Inc.

F34-HE
Julabo 9212634

-30 ℃ temp. range (150 ℃)
0.2 bar suction rate (0.4 bar)
0.4 bar pump pressure (0.7 bar)
22-26 L/min pump flow

0.45 kw (at 20 ℃)

24 cm × 30 cm × 15 cm

20 L
