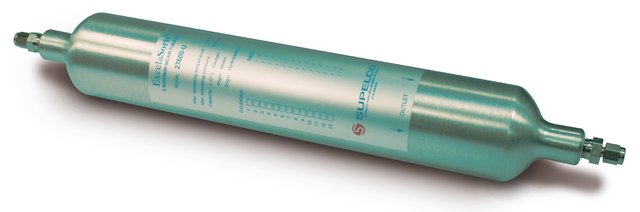

Supelco^® 氦纯化器

SB.54

This multiple bed trap removes hydrocarbons, moisture, oxygen, carbon monoxide, and carbon dioxide from helium gas streams. The amount of highly effective, high capacity adsorbent material in each bed is optimized so that breakthrough of each contaminant is as close to simultaneous as possible. This avoids the costly replacement observed with other broad-spectrum traps that have exhausted their capacity for one contaminant, but still have capacity for other contaminants. This trap will easily purify 99.997% purity helium to a cumulative level of 100 ppb (hydrocarbons + moisture + oxygen + carbon monoxide + carbon dioxide).

Specifications:

• Output Purity: 99.99999%
• Output Efficiency (total): <100 ppb
• Output Efficiency (hydrocarbons): <20 ppb (as methane)
• Output Efficiency (moisture): <10 ppb
• Output Efficiency (oxygen): <2 ppb
• Output Efficiency (carbon monoxide): <20 ppb
• Output Efficiency (carbon dioxide): <1ppm
• Capacity (hydrocarbons): 30 g (as methane)
• Capacity (moisture): 46 g
• Capacity (oxygen): 1200mg
• Max. Flow Rate: 8 L/min.
• Max. Pressure: 500 psi
• Max. Temp.: 100 ℃

Dimensions for both purifiers
16.5 in. (41..91 cm) long × 2 5/16 in. (6.3 cm) diameter

Supelco is a registered trademark of sigma-aldrich Co. LLC

100

stainless steel fittings

1/8 in. O.D. Swagelok (nuts and ferrules included)

GHS08,GHS09

Danger

H317 - H334 - H350i - H373 - H410

P202 - P260 - P273 - P280 - P302 + P352 - P308 + P313

Aquatic Acute 1 - Aquatic Chronic 1 - Carc. 1A Inhalation - Resp. Sens. 1 - Skin Sens. 1 - STOT RE 2 Inhalation

Lungs

6.1C - Combustible, acute toxic Cat.3 / toxic compounds or compounds which causing chronic effects

WGK 3
