Porter 调压器

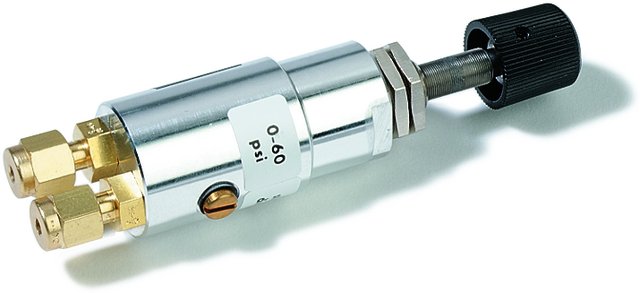

Porter Model 4000 Miniature Pressure Regulator
产品编号:4097920
包装规格:1 EA
产品类别:进口试剂
优惠价:立即咨询
产品价格
产品编号包装单位单价(元)国内现货国外库存询价单
40979201 EA3360
产品别名

Porter 调压器

Porter Model 4000 Miniature Pressure Regulator

基本信息
NACRES
SB.54
General description【一般描述】
Provides the same control and stability at lower pressures as the larger low flow pressure regulator (Cat. No. 22816), but requires much less space. The 1/8 in. (2.9 cm) O.D. body fits into the smallest of instruments. Recommended for flows of 0-500 cc/min. A 10 psi pressure change will not change the outlet pressure by more than 0.05 psi. From 2 cc/min to 250 cc/min, the outlet pressure will not change by more than 0.2 psi.

Specifications
  • Flow Capacity: 0-15 liters/min (60 psig helium supply, 15 psig outlet)
  • Regulation Range: 0-60 psig (0-4.2 kg/cm2)
  • Max. Operating Pressure: 250 psig (17.6 kg/cm2)
  • Pressure Drop Required: >10 psi (0.7 kg/cm2)
  • Construction: aluminum body & bonnet, stainless steel diaphragm
安全信息
Storage Class Code【储存分类代码】
13 - Non Combustible Solids
WGK
WGK 3
