模块化转子流量计

Modular Rotameter
产品编号:4097825
规格:flow range, 38-1250 mL/min
包装规格:1 EA
产品类别:进口试剂
品牌:Supelco
优惠价:立即咨询
产品价格
产品编号包装单位单价(元)国内现货国外库存询价单
40978251 EA5650
产品别名

模块化转子流量计

Modular Rotameter

HIGH FLOW FLOWMETER KIT

高流量流量计套件

基本信息
NACRES
SB.54
General description【一般描述】
Rotameters are suitable for low flow measurement. They can only be used on clean fluids. It has a tapered metering tube which is mounted vertically with small end at the bottom and a float which is free to move within the tube. The fluid to be measured enters at the bottom of the tube, passes upwards around the float and out at the top. The increase and decrease of flow causes the float to rise higher or drop to low respectively. The flow rate is hence determined by direct observation of the position of the float in the metering tube.

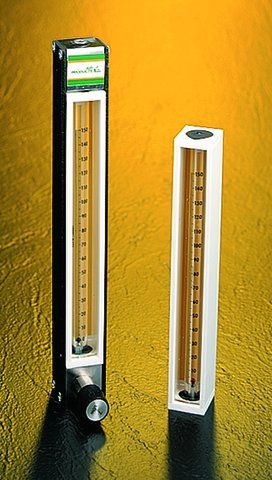

The modular design of this rotameter allows the unit to be quickly converted to monitor different flow ranges. Each unit includes a rotameter body and two modules, each with two floats installed inside the flow tube (each float has a different working range). The floats are never touched. Instead, the module is simply interchanged.

Connections are 1/8 in. female NPT. Use connector to male NPT fittings to connect into gas delivery system. The rotameter can be installed on a tripod assembly (order tripod assembly separately).

Low Flow Kit (Cat. No. 22549)
Module 1
  • Glass Float: 6-60 mL/min.
  • Stainless Steel Float: 15-150 mL/min.
Module 2
  • Sapphire Float: 11-110 mL/min.
  • Carboloy Float: 30-300 mL/min.

High Flow Kit (Cat. No. 22550-U)
Module 1
  • Glass Float: 38-380 mL/min. - Dark Brown float
  • Stainless Steel Float: 84-840 mL/min. - metallic float
Module 2
  • Sapphire Float: 54-540 mL/min. -Red float
  • Carboloy Float: 125-1250 mL/min. -metalic float
Application【应用】
Calibrated Supelco Rotameter is suitable in mixing medical grade breathable gas with either oxygen or nitrogen.
产品性质
feature【特点】
flow range 38 ‑ 1250 mL/min
