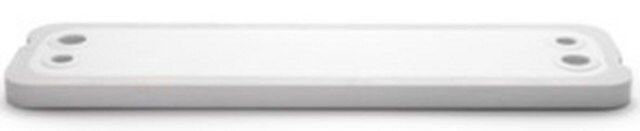

Pellicon® 3 Cassette with Ultracel® Membrane
产品别名
Pellicon® 3 Cassette with Ultracel® Membrane
Pellicon 3 Cassette with Ultracel 5kDa Membrane, C Screen, 88 cm2
基本信息
| eCl@ss | 32031602 |
| NACRES | NB.24 |
| General description【一般描述】 | Filter Type: 超滤 Device Configuration: Cassette Filter Code: PLCCC |
| Features and Benefits【特点和优势】 | Type C screen (coarse screen) |
| Other Notes【其他说明】 | These products are manufactured in a facility which adheres to FDA Good Manufacturing Practices. |
| Analysis Note【分析说明】 | Gravimetric Extractables: after 24 hours in water at controlled room temperature |
| Legal Information【法律信息】 | Pellicon is a registered trademark of Merck KGaA, Darmstadt, Germany ULTRACEL is a registered trademark of Merck KGaA, Darmstadt, Germany |
产品性质
| material【物料】 | TPE seal composite regenerated cellulose (CRC) membrane polypropylene polypropylene cap (for end) polypropylene screen |
| Quality Level【质量水平】 | 400 |
| feature【特点】 | holdup volume 3.6 mL (in feed channel) |
| manufacturer/tradename | Pellicon® |
| parameter【参数】 | 2.75 bar max. inlet pressure (40 psi) at 50 ℃ 30 psi max. reverse press. exposure at 25 ℃ (for 24 hours) 4-6 L/min-m2 recirculation rate 40 psi max. transmembrane pressure at 4-50 ℃ 5.5 bar max. inlet pressure (80 psi) at 40 ℃ 5.5 bar max. transmembrane pressure (80 psig) at 30 ℃ 6.9 bar max. inlet pressure (100 psi) 80 psi max. transmembrane pressure at 4-40 ℃ |
| technique(s) | analytical sample preparation: suitable buffer exchange: suitable protein purification: suitable (concentration) |
| H【高度】 | 0.8 cm (0.33 in.) |
| L【长度】 | 20.6 cm (8.1 in.) |
| W【宽度】 | 5.6 cm (2.2 in.) |
| filtration area【过滤面积】 | 88 cm2 |
| membrane area【膜面积】 | 88 cm2 |
| overall size【总尺寸】 | 88 cm2 |
| gravimetric extractables | ≤1500 mg/m2 |
| matrix【基质】 | Ultracel® (Membrane) |
| pore size【孔径】 | 5 kDa NMWCO |
| pH【pH值(酸碱度)】 | 2-13 |
| shipped in【运输】 | ambient |
安全信息
| Storage Class Code【储存分类代码】 | 10 - Combustible liquids |
| WGK | WGK 1 |
