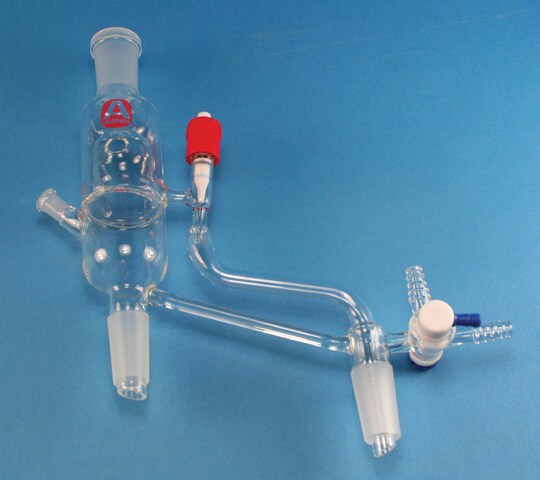

Aldrich® high-efficiency variable take off head
| 产品编号： | 4065101 |
| 规格： | Joint: ST/NS 29/32, thermometer Joint: ST/NS 10/18 |
| 包装规格： | 1 EA |
| 产品类别： | 进口试剂 |
| 品牌： | Sigma-Aldrich |
| 优惠价： | 立即咨询 |
基本信息
| NACRES | NB.43 |
| General description【一般描述】 | Vapor from the distillation column passes through the upper holes in the take-off head and into the condenser. The condensed liquid can be drained into a side storage flask (PTFE valve open), or allowed to return to the distillation column (PTFE valve closed) through a slot in the lower part of the head. The upper and lower ST joints permit the use of take-off head with different distillation columns and condensers. Features a precision PTFE valve, and vacuum/purge hose connections with a PTFE stopcock. A 50mm immersion length thermometer is recommended. |
| Legal Information【法律信息】 | Aldrich is a registered trademark of sigma-aldrich Co. LLC |
产品性质
| Joint【接合处】 | thermometer Joint: ST/NS10/18 Joint: ST/NS29/32 |
