Rhombic chamber chip-120 μl

Microfludic chip x1

Chamber chips come in the format of a microscopy slide (75.5 mm x 25.5 mm x 1.5 mm) and are equipped with Mini Luer interfaces. Their key microfluidic elements are reaction chambers of various volumes. Chamber chips are the perfect tool to facilitate reactions, such as amplification of a targeted DNA during qPCR, or to extract target molecules out of a given sample in preparative quantities. These chips can, for example, be used as nucleic acid extraction devices via magnetic beads simply via applying beads and sample and by using an external magnet to hold the beads in place. These procedures can be done completely manually with a pipette – besides the magnet no additional equipment is necessary – or semi-automated with normal peristaltic pumps found in most life science labs.

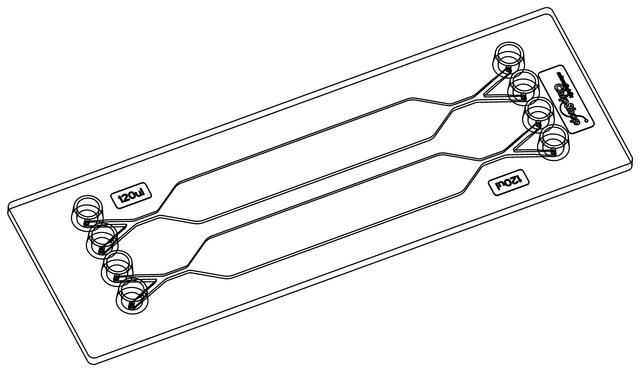

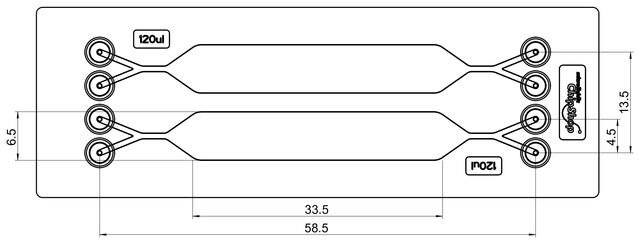

Rhombic chamber chip - 120 μl, Fluidic 172, PMMA is made of PMMA (Poly(methyl methacrylate)) and offers rhombic chambers with two inlets and two outlets. These chips are versatile tools for various experimental procedures such as sample preparation.

Chip Properties:

• Orientation: Lengthwise
• Mini Luer Interface
• Material: Poly(methyl methacrylate) (PMMA)
• Chamber Volume: 120μl
• Chamber Depth: 500μm
