Droplet generator chip-One channel design

Microfludic chip x1

Microfluidic generation of droplets can produce highly monodispersed droplets with high frequency (up to hundreds of kHz). Interest in droplet-based microfluidic systems has grown substantially, because microfluidics offers the ability to handle very small volumes (μl to fl) of fluids, provides better mixing, encapsulation, sorting, and sensing. Microfluidics can be used for high throughput experimentation. Microfluidic-based droplets have many diverse and varied applications such as particle synthesis and chemical analysis. Highly controlled droplet production also makes single cell analysis, or drug testing possible.

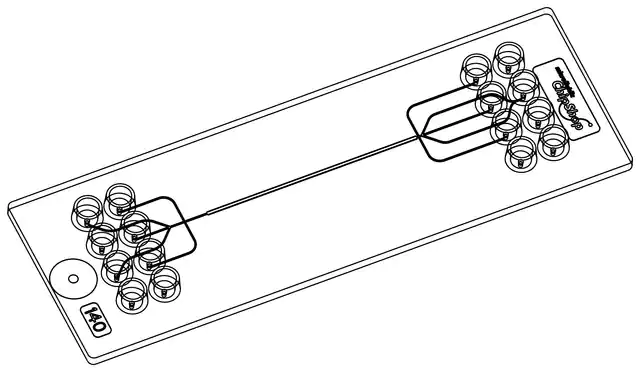

Droplet generator chip - One channel design, Fluidic 163, COC is made of COC (Cyclic olefin copolymer ), it is the larger version of the Fluidic 162 chip and features a similar design with larger channel dimensions. With a nozzle size of 140 μm droplet sizes between 190 μm (∼3.25 nl) and 420 μm diameter can be realized. Fluidic 163 can be used from two sides, as it features droplet generation crossings at either side of the collection channel. Both sides are similar in channel design with a slight difference in distance of the double cross intersections
