HPTLC Silica gel 60 F254 Multiformat pre-scored to 5 x 5 cm
产品性质
| material【物料】 | glass support silica gel 60 matrix |
| Quality Level【质量水平】 | 100 |
| feature【特点】 | binder Organic Polymer fluorescent indicator |
| packaging【包装】 | pkg of 25 plates |
| technique(s) | thin layer chromatography (TLC): suitable |
| layer thickness【层厚度】 | 200 μm |
| plate L × W【板长度 × 宽度】 | 10 cm × 10 cm |
| Particle size【粒径】 | 5-6 μm |
| pore size【孔径】 | 60 Å medium pore diameter |
| storage temp.【储存温度】 | 2-30℃ |
基本信息

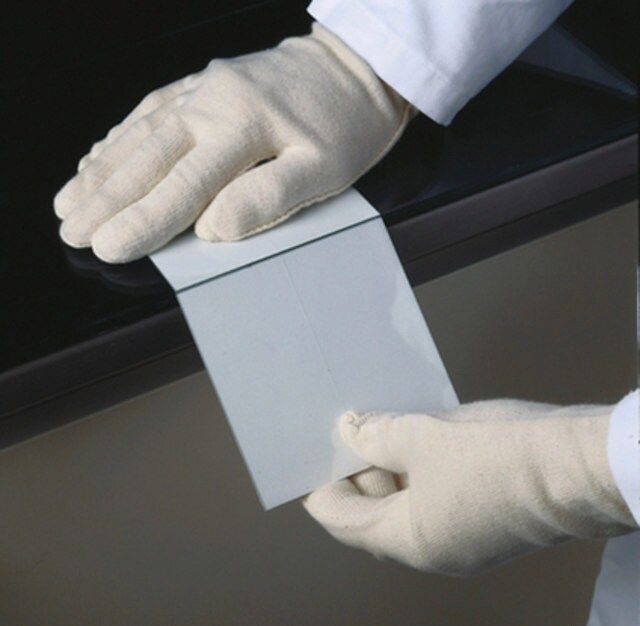

| General description【一般描述】 | ex Glass plates 10 x 10 cm These pre-scored glass plates fold into smaller formats with just one easy snap of the fingers. |
| Linkage【联系】 | Replaces: 5635-5; 5635 |
| Analysis Note【分析说明】 | Specific surface area (according to BET; 5-Pt. measurement): 480 - 540 m²/g Pore volume (N₂-isotherm): 0.74 - 0.84 ml/g d 50 (laser diffraction, size distribution): 5 - 7 µm Layer thickness: 150 - 200 µm Deviation of layer thickness per plate: ≤ 35 µm Chromatographic testings: A) Colour test hRf-values - bleu vif organol, colour test, lipophile: 17 - 22 - Ceres Black G, colour test, lipophile: 38 - 43 - ceres Violet brn, colour test, lipophile: 58 - 64 separation number - colourtest, lipophile: ≥ 10.0 B) Steriod test hRf-values - hydrocortisone, steroid test: 23 - 29 - Reichstein S, steroid test: 36 - 45 - methyltestosterone, steroid test: 43 - 52 separation number - steroid test: ≥ 10.5 Typical value determined on a conditioned plate Eluent A) Toluene (45% rel.humidity) Eluent B) Ethyl acetate/Toluene (95+5 v/v; 20% rel.humidity) |
