转子流量计

flow range 0 ‑ 454 mL/min

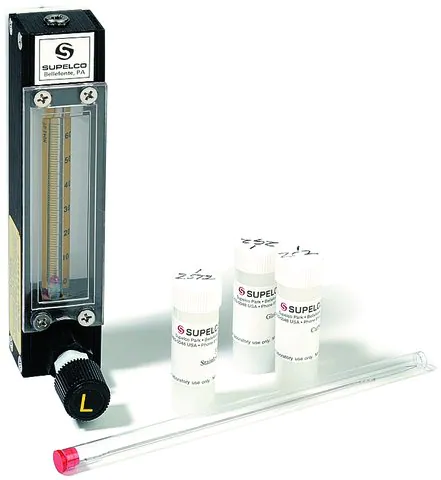

This rotameter is designed for the accurate regulation of gas flow, providing measurement at the same time. This versatile unit includes four interchangeable floats, each with a different working range. Simply install the float required for the application. Standard flow tables in mL/min at STP are included.

The rotameter is easy to mount. Alternatively, it can be installed on a tripod assembly (order tripod assembly separately). Available with or without needle valve.

Specifications:

• Max. Pressure: 200 psig (13.8 bar)
• Max. Temp.: 250 °F (121 ℃)
• Connections: 1/8 in. female NPT (use connector to male NPT fittings to connect into gas delivery system)

Float Upper Flow Rates
0-33 mL/min. Rotameter

• Glass Float: 6 mL/min.
• Sapphire Float: 8 mL/min.
• Stainless Steel Float: 17 mL/min.
• Carboloy Float: 33 mL/min.

0-110 mL/min. Rotameter

• Glass Float: 19 mL/min.
• Sapphire Float: 30 mL/min.
• Stainless Steel Float: 61 mL/min.
• Carboloy Float: 110 mL/min.

0-246 mL/min. Rotameter

• Glass Float: 49 mL/min.
• Sapphire Float: 73 mL/min.
• Stainless Steel Float: 137 mL/min.
• Carboloy Float: 246 mL/min.

0-454 mL/min. Rotameter

• Glass Float: 92 mL/min.
• Sapphire Float: 140 mL/min.
• Stainless Steel Float: 264 mL/min.
• Carboloy Float: 454 mL/min.
