Bandelin SONOPULS ultrasonic homogenizer probes

NB.74

Amplitude: HD 2070 = 60 mmss/HD 2200 = 140 mmss
For use with HD 2070 homogenizer and SG70G horn or HD 2200 homogenizer and SG 213G horn. Especially used for sonification of ceramic suspensions or when preparing samples for grain size analysis.
Transmit mechanical longitudinal waves into the sample. They are thermoresistant, can be treated in autoclaves and are resistant to corrosive media. Sample volume, diameter of the processing vessel and the required amplitude determine the selection of the unit and the type of probe. The higher the amplitude, the more intense the sonication.

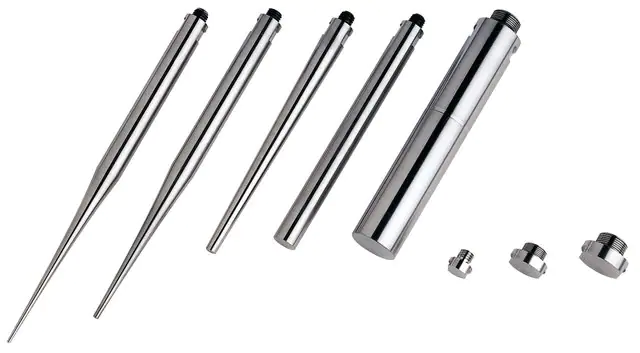

Using the product image (from left to right):

MS 72 micro tip
MS 73 micro tip
KE 76 tapered tip
VS 70 T extended probe
VS 200 T extended probe
TT 13 flat tip
TT 19 flat tip
TT 25 flat tip

titanium (Ti-6AI-4V alloy)

Bandelin

available only in EU

13 mm × 126 mm

≥17 mm

10-200 mL , HD 2070
20-900 mL , HD 2200
