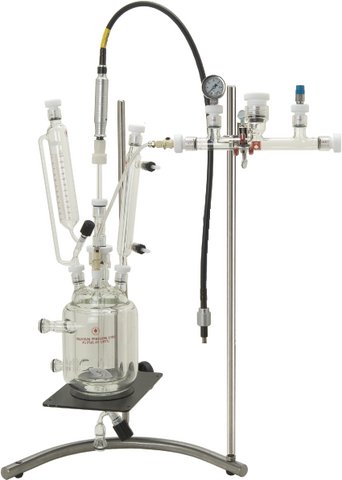

Ace pressure reactor system complete, one-piece

NB.51

Complete, one-piece, jacketed flask with bottom outlet, pressure reactor systems designed to perform low to moderate positive pressure reactions, synthesis and catalysis. Reactor capacities range from 500 mL to 5000 mL and use Ace-Threds^™ to achieve a leak-tight system.

One-piece design features a 25 mm center opening and has a higher allowable pressure rating than our two-piece design. Rated 45 psi at 100℃. Bottom outlet and jacket inlet/outlets have 28/15 O-ring ball joint connections.

Use these reactor systems with Ace stir motor ACE1364909 and Ace controller ACE1353010, purchased separately. (USA only)

Systems include:

• One-piece, jacketed pressure vessel body with #25 center neck, (3) #15 and (1) #7 side necks, 0-5 mm 28/15 ball joint bottom outlet
• Addition funnel
• West condenser, Ace-Threds
• Pressure relief manifold, complete
• Thermowell
• Bearing, complete, Ace Thred
• Stir shaft - glass, button style 10 mm
• Flex stir shaft complete, 91 cm long
• Stir blade, PTFE, 19 mm
• Krytox vacuum grease - tube
• Flex-Grip^® chuck
• Bushing, PTFE, #15 w/O-ring
• Polypropylene tubing - length
• PTFE sealing tape
• Support shelf with hole
• SS T-stand with 36 in. rod
• Clamp holder
• Chain clamp

Ace-Thred is a trademark of Ace Glass, Inc.
Flex-Grip is a registered trademark of Ace Glass, Inc.

5000 mL

500 mL
