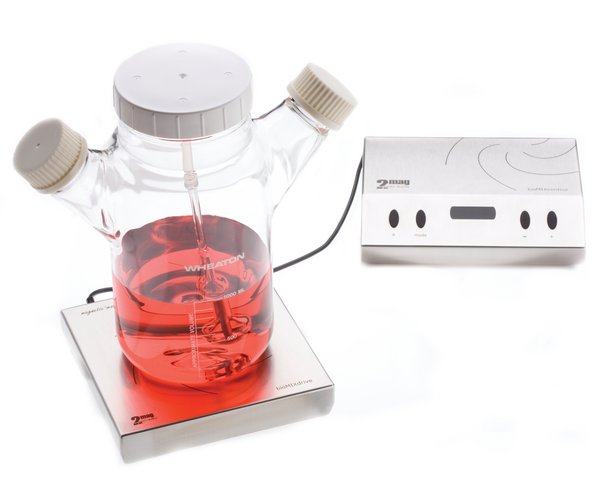

2mag bioMIXcontrol MS4 control unit

NB.72

Efficient control unit, for 4 drives 2mag bioMIXdrive 1, developed for the hard daily lab use and warming-free continuous operation.

Control unit for the connection of 4 stirring drive bioMIXdrive 1, individual and independent speed setting for each stirring drive (Master-Slave-Technology), also ON/OFF function, synchronous speed mode for all drives, extended speed range from 5 to 250 rpm, 6 watts/stirring point without any own-generated heating effect, automatic power setting for the warming-free continuous operation e.g. in CO₂-incubators, jerk-free stirring, even and smooth stirring also at slow speeds.

Digital display for speed setting, SoftStart for reliable and safe accelerating of stirring bar, QuickSet for quick setting of start- and maximum speed, storage of last working status when turning off, firm stainless steel housing, easy to clean.

Interfaces: 0-10 volts, 4-20 mA, RS 232, USB, Ethernet.

stainless steel plate

CE compliant
stirring speed 5 ‑ 250 rpm

2mag 98604

5-250 rpm speed

× 200 mm × 110 mm

capacity (4 x bioMIXdrive 1)
