Welch^® DuoSeal^® vacuum pump

NB.79

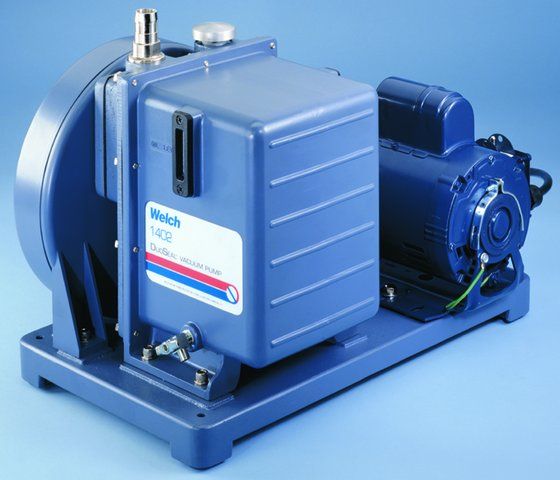

DuoSeal high vacuum pumps are effective for drying using large vacuum manifolds, and are ideal for vacuum distillations, concentrating, drying, and degassing applications. The <0.001 torr ultimate pressure results in superior drying performance for the most difficult samples. Belt-drive pumps are known for their durability. Low pump rpm reduces wear and minimizes temperature to reduce oil degradation. The large oil capacity dilutes contaminants for extended service life.

Required but not included - exhaust filter catalog number Z412163.

Model 1400 specifications:
Pumping speed: 0.9 cfm (25 L/min)
Max. vacuum: 1 × 10^-4 torr
Oil capacity: 0.62 qt (0.59 L)
Tubing needed: I.D. ⁷/₁₆ in.
Exhaust and intake thread type: ³/₄ -20
Rpm: 580
Dimensions: L × W × H, 17.8 × 9 × 12.61 in. (45.1 × 22.9 × 32.1 cm)
Weight: 58 lb (26 kg)

Model 1405 specifications:
Pumping speed: 2.1 cfm (60 L/min)
Max. vacuum: 3 × 10^-4 torr
Oil capacity: 0.43 qt (0.41 L)
Tubing needed: I.D. ⁷/₁₆ in.
Exhaust and intake thread type: ³/₄ -20
Rpm: 525
Dimensions: L × W × H, 5 × 13 × 18 in. (38 × 33 × 46.8 cm)
Weight: 93 lb (42 kg)

DuoSeal is a registered trademark of Gardner Denver Thomas, Inc.
Welch is a registered trademark of Gardner Denver Thomas, Inc.

CE compliant
gas ballast

Welch 1405C-02

60 L/min pumping speed
