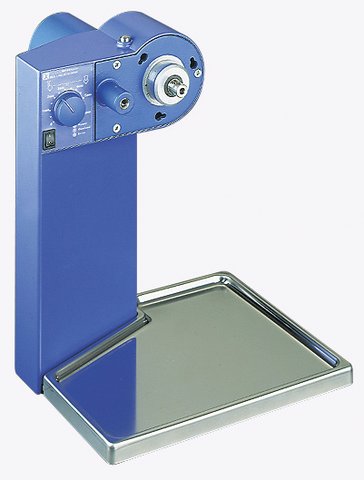

IKA^® MF10 basic microfine grinder drive

产品编号：

3098175

规格：	universal grinder, stainless steel, 6500rpm, 230V, 1/cs

包装规格：

1 EA

产品类别：

仪器耗材

优惠价：

立即咨询

产品价格

产品编号	包装单位	单价(元)	国内现货	国外库存	询价单
3098175	1 EA	57880
3098175	1 EA	57880

IKA^® MF10 basic microfine grinder drive

grinders

grinding mills

产品性质

AC/DC input	230 V AC
feature【特点】	CE compliant
packaging【包装】	case of 1 pack of 1
manufacturer/tradename	IKA 283600X
parameter【参数】	3000-6500 rpm speed
W × H × D【宽度 × 高度 × 直径】	320 mm × 380 mm × 300 mm
weight【重量】	9.7 kg

基本信息

General description【一般描述】

IKA^® MF 10 Basic Microfine Grinder Drive

MF 10 basic Microfine grinder drive is a continuously operating universal grinder.

MF 10 Basic Microfine Grinder Drive features:

Powerful drive
Easy to clean working surface made of stainless steel
Two different grinding heads can be attached to the drive
Heads are easily changeable
Grinding heads not incl. with delivery

MF 10 Basic Microfine Grinder Drive technical data:

Process type: inline
Operating principle: cutting/impact
Motor rating input: 1000 W
Motor rating output: 500 W
Speed range: 3000-6500 rpm
Power-on time ON: 120 min
Power-om time OFF: 30 min
Milling chamber, can be cooled with water: no
Mill feed can be cooled in milling chamber with dry ice: yes
Mill feed can be cooled in milling chamber with liquid nitrogen: no
Dimensions (W x H x D): 320 x 380 x 300 mm
Weight: 9.7 kg
Permissible ambient temperature: 5-40℃
Permissible relative moisture: 80%
Protection class according to DIN EN 60529: IP 22
RS 232 interface: no
Analog output: no
Voltage: 230 / 115 V
Frequency: 50/60 Hz
Power input: 1000 W

Legal Information【法律信息】

IKA is a registered trademark of IKA-Werke GmbH & Co. KG
