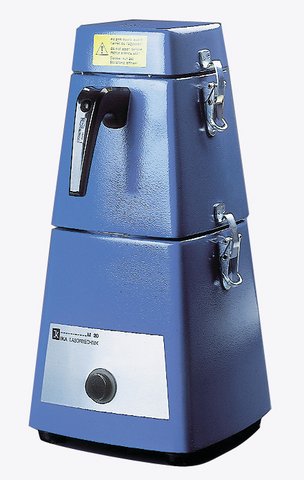

IKA® M 20 universal mill

产品编号:3098169
规格:batch mill, stainless steel, 230V, 1/cs
包装规格:1 EA
产品类别:仪器耗材
优惠价:立即咨询
产品价格
产品编号包装单位单价(元)国内现货国外库存询价单
30981691 EA81750
30981691 EA81750

IKA® M 20 universal mill

grinders

grinding mills

产品性质
AC/DC input
230 V AC
material【物料】
stainless steel (milling chamber and beater/cutter)
feature【特点】
CE compliant
packaging【包装】
case of 1
pack of 1
manufacturer/tradename
IKA 160360X
W × H × D【宽度 × 高度 × 直径】
170 mm × 350 mm × 170 mm
weight【重量】
6.6 kg
基本信息
General description【一般描述】
IKA® M 20 Universal Mill

Batch mill suitable for dry grinding of hard and brittle substances.

  • Double-walled grinding chamber can be cooled with water through two hose adapters
  • Removable grinding chamber, easy to clean
  • Two grinding chambers can be alternately operated using one drive
  • M 21 blade incl. with delivery

  • Process type: batch
  • Operating principle: cutting/impact
  • Motor rating input: 620 W
  • Motor rating output: 260 W
  • Speed max.: 20,000 rpm
  • Circumferential speed max.: 72 m/s
  • Usable volume max.: 250 ml
  • Feed hardness max.: 5 Mohs
  • Feed grain size max.: 7 mm
  • Material beater/cutter: stainless steel 1.4034
  • Material milling chamber: stainless steel 1.4301
  • Power-on time: ON 7 min
  • Power-off time: OFF 10 min
  • Milling chamber, can be cooled with water: yes
  • Mill feed can be cooled in milling chamber with dry ice: yes
  • Mill feed can be cooled in milling chamber with liquid nitrogen: no
  • Dimensions (W x H x D): 170 x 350 x 170 mm
  • Weight: 6.6 kg
Legal Information【法律信息】
IKA is a registered trademark of IKA-Werke GmbH & Co. KG
