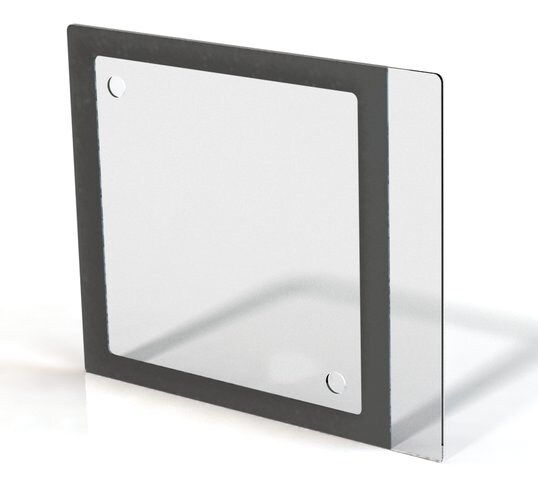

Grace Bio-Labs HybriWell-FL^TM sealing system, Fluor-"friendly" adhesive chamber

NB.22

Grace Bio-Labs HybriWell^™ sealing system seals securely to a microscope slide surface in seconds to accommodate water bath hybridizations, such as protein or nucleic acid hybridization assays. The HybriWell fluorescent (HybriWell-FL^™) hybridization system has been designed specifically for sensitive DNA microarray assays involving Cy5^® or AlexaFluor^® 647 direct-labeled DNA probes.

Features:

• Encloses a single or multiple specimens in a small reagent volume and eliminate evaporation.
• Access ports in the chamber surface allow for the addition or removal of reactants.
• Ports are easily sealed using adhesive seal tabs provided with each order.
• Sealed chambers are watertight and ideally suited for waterbath incubations.
• RNase free, hydrophobic surfaces will not trap or bind probes.
• Disposable chamber removes cleanly and easily even after heating.
• Each package includes illustrated instructions for use, applicator and 200 adhesive port seals.

ALEXA FLUOR is a registered trademark of Life Technologies
Cy is a registered trademark of Cytiva
HybriWell is a trademark of Grace Bio-Labs, Inc.
HybriWell-FL is a trademark of Grace Bio-Labs, Inc.

colorless (black adhesive)
polycarbonate

non-sterile

wells 1

Grace Bio-Labs 611204

15-25 μL

1.5 mm

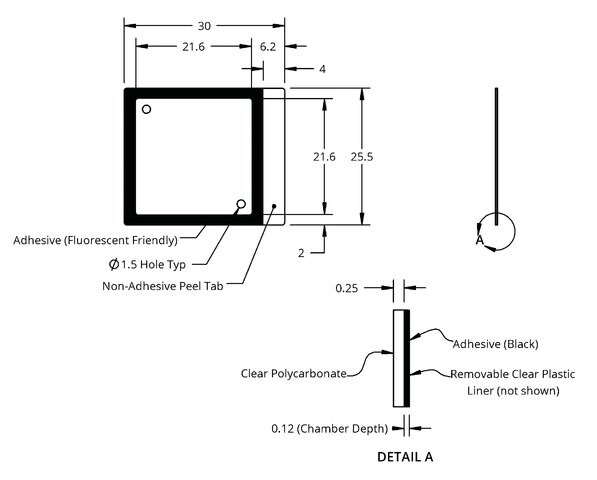

22 mm × 22 mm × 0.12 mm

1
