Grace Bio-Labs HybriWell^TM seals, assortment

NB.22

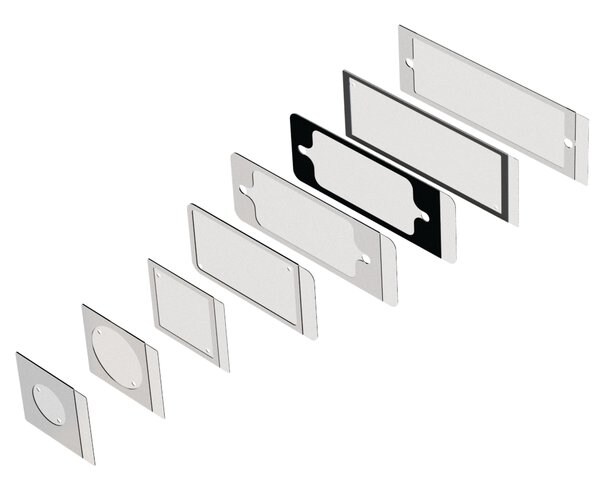

A Selection of Reaction Chambers that Every Lab Should Have on Hand

Conserve precious samples and reagents by selecting the optimal area and volume for your application and create a secure seal to eliminate evaporation. HybriWells are easy-to-use enclosures for use on a variety of smooth surfaces. Disposable chamber removes cleanly and easily, even after heating. HybriWell seals are heat stable to 97 ℃, and are resistant to aqueous buffers and detergents. Made of nuclease-free, hydrophobic material the HybriWell will not trap or bind probes and is completely compatible with biological samples.

Application includes:

• In situ hybridization
• Microarrays
• Immunocytochemistry
• DNA Amplification
• Neurophysiology
• Reaction kinetics
• Rapid microfluidic protoyping
• Nucleic Acid Programmable Protein Arrays

HybriWell is a trademark of Grace Bio-Labs, Inc.

组份可单独销售

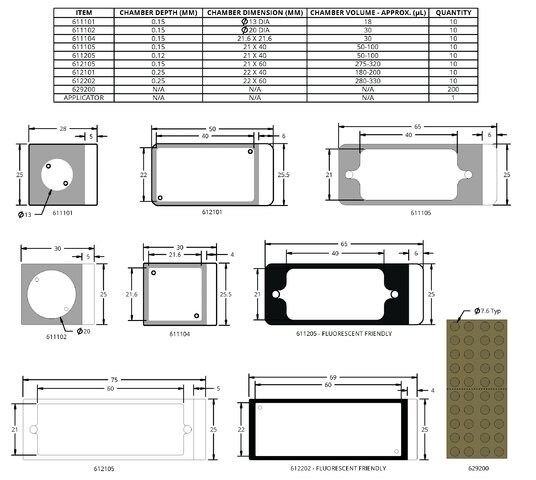

GBL611101 Grace Bio-Labs HybriWell^™ sealing system, SecureSeal^™ adhesive chamber, chamber volume 18 μL, size diam. × thickness 13 mm × 0.15 mm, ports diam. 1.5 mm
GBL611102 Grace Bio-Labs HybriWell^™ sealing system, SecureSeal^™ adhesive chamber, chamber volume 30 μL, size diam. × thickness 20 mm × 0.15 mm, ports diam. 1.5 mm
GBL611104 Grace Bio-Labs HybriWell^™ sealing system, SecureSeal^™ adhesive chamber, chamber volume 30-50 μL, size L × W × thickness 21.6 mm × 21.6 mm × 0.15 mm, ports diam. 1.5 mm
GBL611105 Grace Bio-Labs HybriWell^™ sealing system, SecureSeal^™ adhesive chamber, chamber volume 50-100 μL, size L × W × thickness 21 mm × 40 mm × 0.15 mm, ports diam. 3.2 mm
GBL611205 Grace Bio-Labs HybriWell-FL^™ sealing system, Fluor-"friendly" adhesive chamber, chamber volume 50-100 μL, size L × W × thickness 22 mm × 40 mm × 0.12 mm, ports diam. 1.5 mm
GBL612105 Grace Bio-Labs HybriWell^™ sealing system, SecureSeal^™ adhesive chamber, chamber volume 275-320 μL, size L × W × thickness 60 mm × 21 mm × 0.15 mm, ports diam. 3.2 mm
GBL612101 Grace Bio-Labs HybriWell^™ sealing system, SecureSeal^™ adhesive chamber, chamber volume 180-200 μL, size L × W × thickness 22 mm × 40 mm × 0.25 mm, ports diam. 1.5 mm
GBL612202 Grace Bio-Labs HybriWell-FL^™ sealing system, Fluor-"friendly" adhesive chamber, chamber volume 280-330 μL, size L × W × thickness 22 mm × 60 mm × 0.25 mm, ports diam. 1.5 mm

silicone (on glass)

non-sterile

wells 1

pack of 8 ea

Grace Bio-Labs 615101

Various mm × Various mm
