Hamilton^® TLC syringe

NB.03

The needles on Thin Layer Chromatography (TLC) syringes are coated from the point for 3/4” with a PTFE-coating. The coating reduces the surface tension between the needle and the liquid making it ideal for reproducible sample spotting. The TLC syringe is available as a cemented needle (SNTLC) or as a replacement needle to be installed into a standard removable needle (RN) syringe. To find the appropriate no needle syringe select general syringes and filter by termination and gauge. Choose the “RN” and “No Needle Included” options to see all syringes that can receive TLC needles. To find the appropriate TLC needle select the TLC option under “Needles” in the main product menu.

Hamilton is a registered trademark of Hamilton Co.

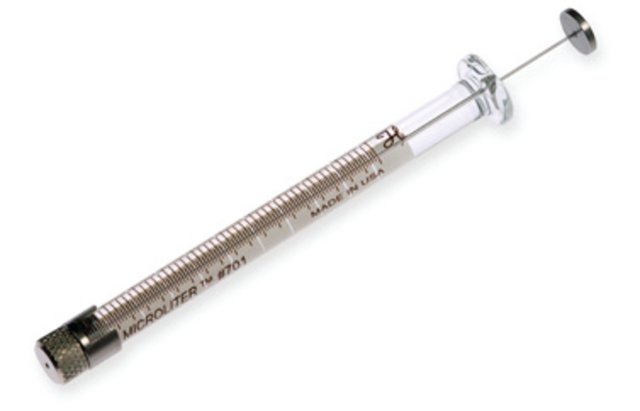

Microliter syringe

autoclavable
model 701 RN, no needle

Hamilton

10-115 ℃ temp. range (50-239 °F)
2000 psig pressure

0.485 mm × 6.60 mm

10 μL
